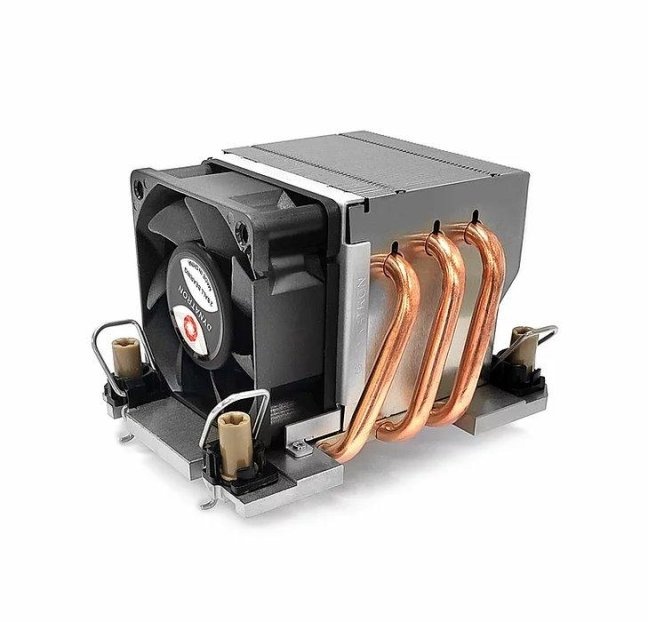

Dynatron N5 - 2U Active Cooler for Intel 4189, up to 205W

CPU Socket
FCLGA 4189-4/5(Socket P4/P5 or P+)

Solution
2U Server and Up

Dimensions
113.0 x 82.0 x 66.0 mm

Weight
460 g

Material
Aluminum Fin stack with Heat Pipe embedded

Fan Dimension
60 x 60 x 25 mm

Speed
Up to 8500 RPM

Rated Voltage
12V

Bearing
2 Ball Bearing

Power
At Duty Cycle 20%: 0.90 W At Duty Cycle 50%: 2.04 W At Duty Cycle 100%: 5.40 W

Air Flow
At Duty Cycle 20%: 8.12 CFM At Duty Cycle 50%: 20.31 CFM At Duty Cycle 100%: 40.60 CFM

Noise Level At Duty Cycle 20%: 16 dBA At Duty Cycle 50%: 35 dBA At Duty Cycle 100%: 50 dBA
Air Pressure
At Duty Cycle 20%: 0.58mm-H2O At Duty Cycle 50%: 3.65 mm-H2O At Duty Cycle 100%: 14.58 mm-H2O

Lead Wire Pin Out
Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)

Thermal Grease
Shin-Etsu 7762 Pre-printed
