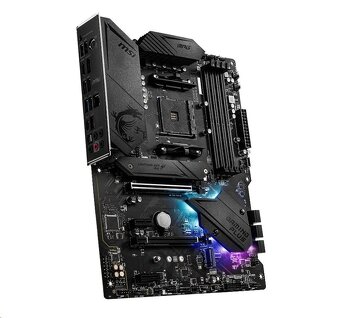

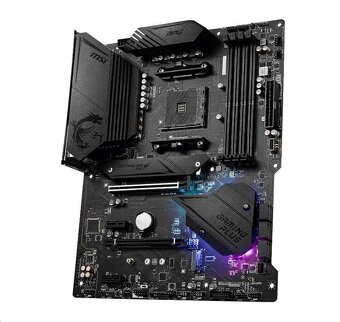

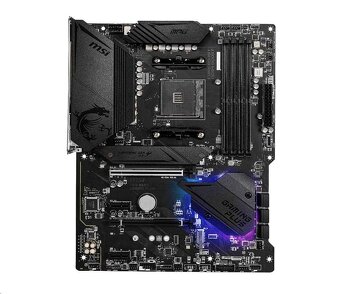

MSI MB Sc AM4 MPG B550 GAMING PLUS, AMD B550, 4xDDR4, VGA

MSI MB Sc AM4 MPG B550 GAMING PLUS, AMD B550, 4xDDR4, VGA, ATX

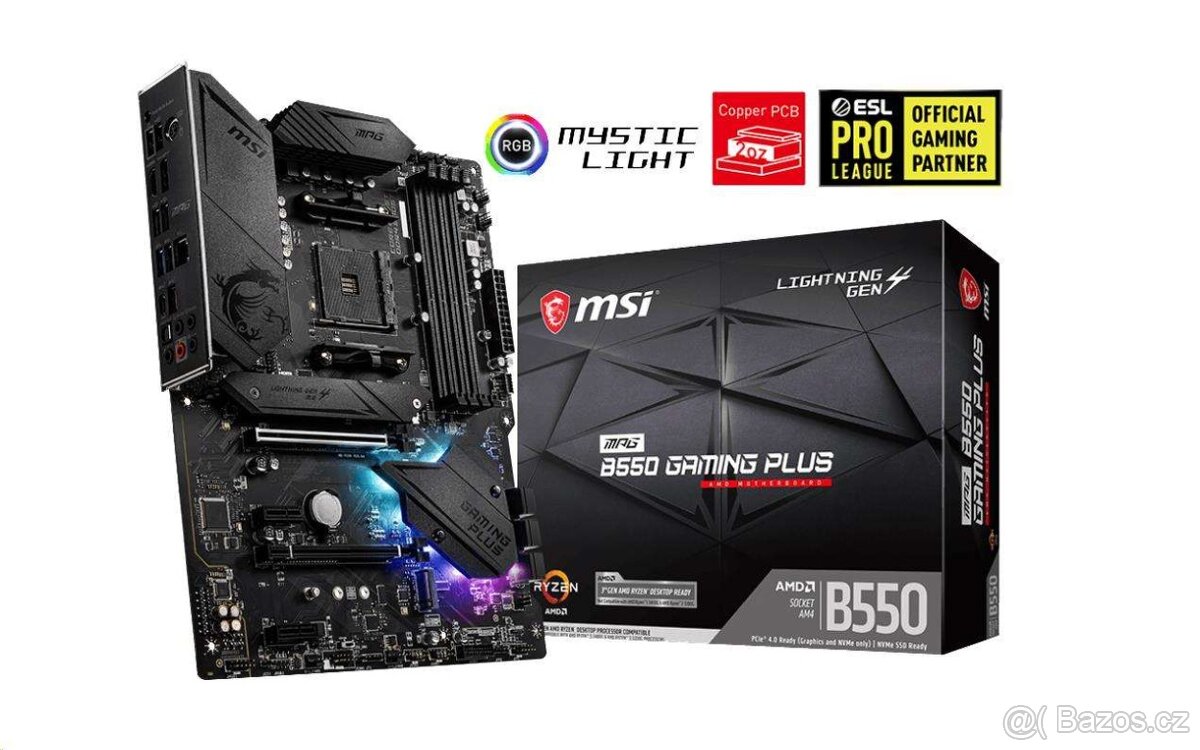

I/O shield, MB, orig.krabice





Chipset: AMD B550

Rozměrový formát: Formát ATX (305 mm x 244 mm)
Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Patice procesoru: AM4

Pozice na paměti: 4x DDR4
Podpora pro paměti:

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Grafické výstupy: na základě procesoru

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Multi GPU:

Supports 2-Way AMD CrossFire™ Technology
Zvuková karta:

Realtek® ALC892 Codec
Síťová karta:

1x Realtek® 8111H Gigabit LAN controller
RAID řadič:

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Rozšiřující sloty:

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2x PCIe 3.0 x1 slots
SATA:

6x SATA 6Gb/s ports
M.2:

2x M.2 slots (Key M)
USB:

zadní USB porty ( celkem 8 )
4x USB 2.0 ports
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 2 10Gbps port
2x USB 3.2 Gen 1 5Gbps ports
přední USB porty ( celkem 7 )
1x USB 3.2 Gen 1 5Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps ports
4x USB 2.0 ports
Interní porty:

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x Clear CMOS jumper

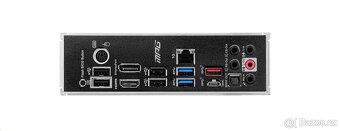

Externí porty:

PS/2 Combo Port
DisplayPort
1x LAN Port
1x USB 3.2 Gen 2 10Gbps (Type-A)
HD Audio Connectors
Flash BIOS Button
4x USB 2.0
HDMI
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x USB 3.2 Gen 2 10Gbps (Type-C)
Optical S/PDIF OUT
