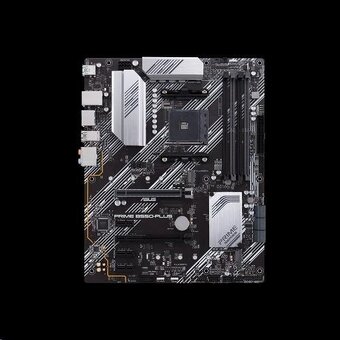

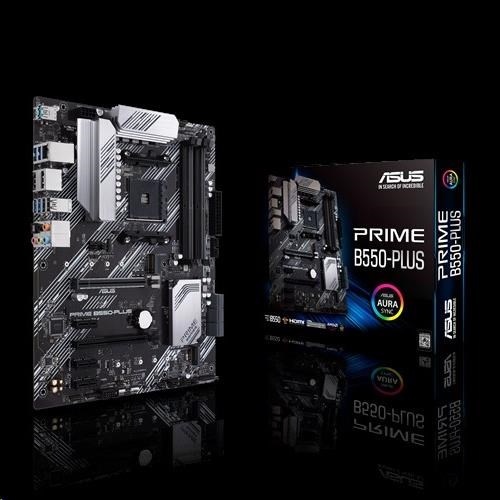

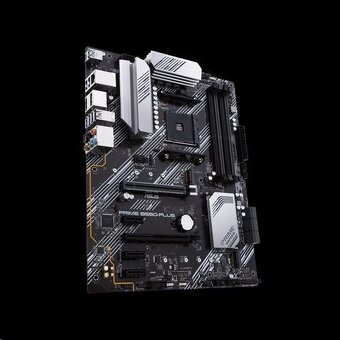

ASUS MB Sc AM4 PRIME B550-PLUS, AMD B550, 4xDDR4, 1xHDMI

ASUS MB Sc AM4 PRIME B550-PLUS, AMD B550, 4xDDR4, 1xDP, 1xHDMI

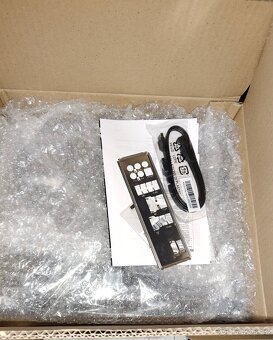

kompletní viz foto v náhradní krabici

Chipset: AMD B550

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

Dual Channel Memory Architecture
Grafické výstupy: (na základě procesoru)

1x DisplayPort 1.2
1x HDMI 2.1(4K@60HZ)
Multi GPU:

AMD 2-Way CrossFireX Technology
Zvuková karta:

Realtek ALC887 7.1-Channel High Definition Audio CODEC
Síťová karta:

Realtek® RTL8111H(ASUS LANGuard)
Rozšiřující sloty:

1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
RAID řadič: 0, 1, 10

SATA:

6x SATA 6Gb/s port(s)
M.2:

1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
USB:

zadní USB porty ( celkem 8 )
2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4x USB 3.2 Gen 1 port(s)(4 x Type-A)
2x USB 2.0 port(s)(2 x Type-A)
přední USB porty ( celkem 6 )
2x USB 3.2 Gen 1 port(s)(2 x Type-A)
4x USB 2.0 port(s)(4 x Type-A)
Interní porty:

1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
3x Chassis Fan connector(s)
1x AIO_PUMP connector
2x Aura RGB Strip Headers
1x Addressable Gen 2 header(s)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x SPI TPM header
6x SATA 6Gb/s connector(s)
1x Thunderbolt header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector(s) (AAFP)
1x Thermal sensor connector(s)
1x Clear CMOS jumper(s)
1x System panel connector
1x COM port header
Externí porty:

1x DisplayPort
1x HDMI
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4x USB 3.2 Gen 1 (blue) Type-A
2x USB 2.0
1x Optical S/PDIF out
5x Audio jack(s)
Obsah balení:

User's manual
I/O Shield
