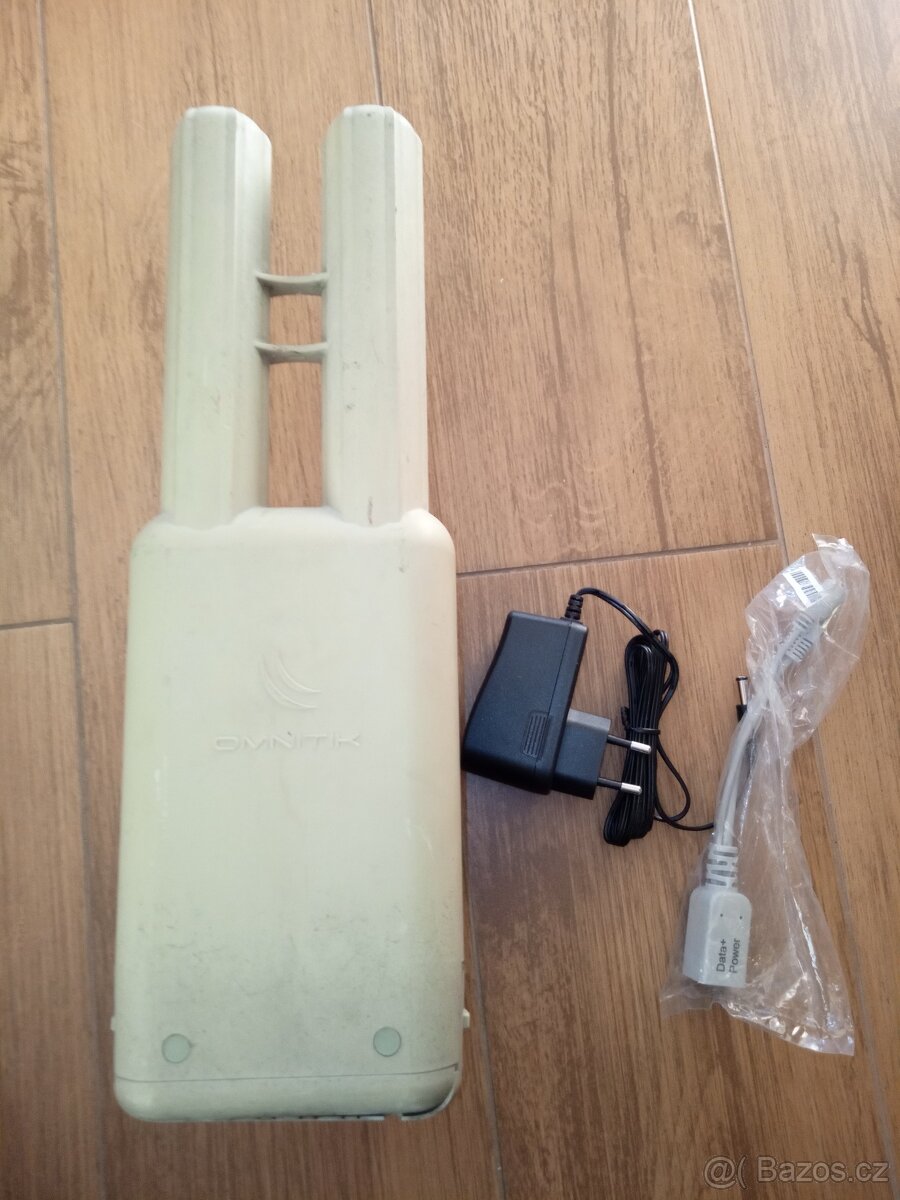

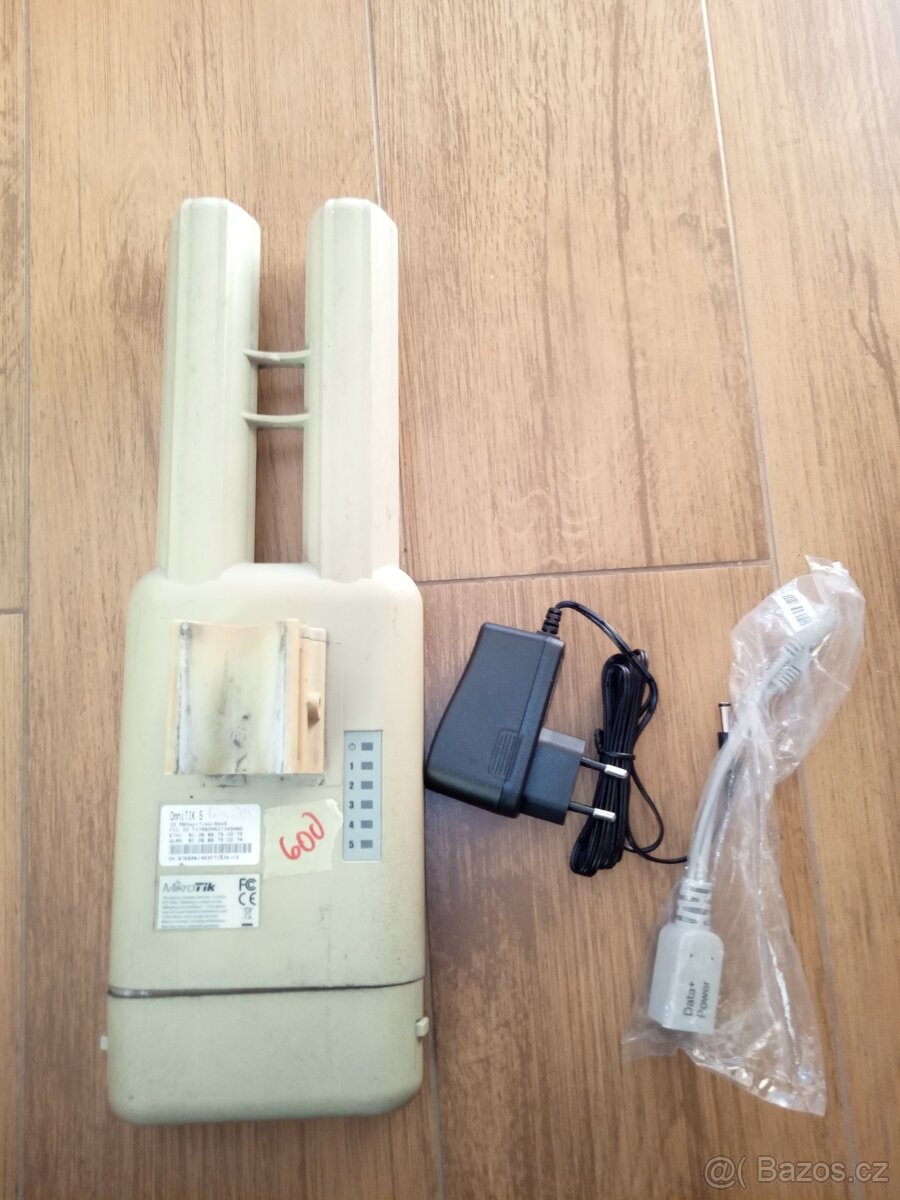

Mikrotik OmniTIK UPA-5HnD 802.11a/n,

pouzity plne funkcni


Specifications

Details

Product code RBOmniTikUPA-5HnD

Architecture MIPSBE

CPU AR9344

CPU core count 1

CPU nominal frequency 600 MHz

Switch chip model AR9344

Dimensions 368x125x55mm

RouterOS license 5

Operating System RouterOS

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 70°C

Powering

Details

Number of DC inputs 1 (PoE-IN)

PoE in Passive PoE

PoE in input Voltage 11-30 V

Wireless specifications

Details

Wireless 5 GHz Max data rate 300 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n

Antenna gain dBi for 5 GHz 7.5

Wireless 5 GHz chip model AR9344

Wireless 5 GHz generation Wi-Fi 4

Ethernet

Details

10/100 Ethernet ports 5

Peripherals

Details

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

Beeper Yes
