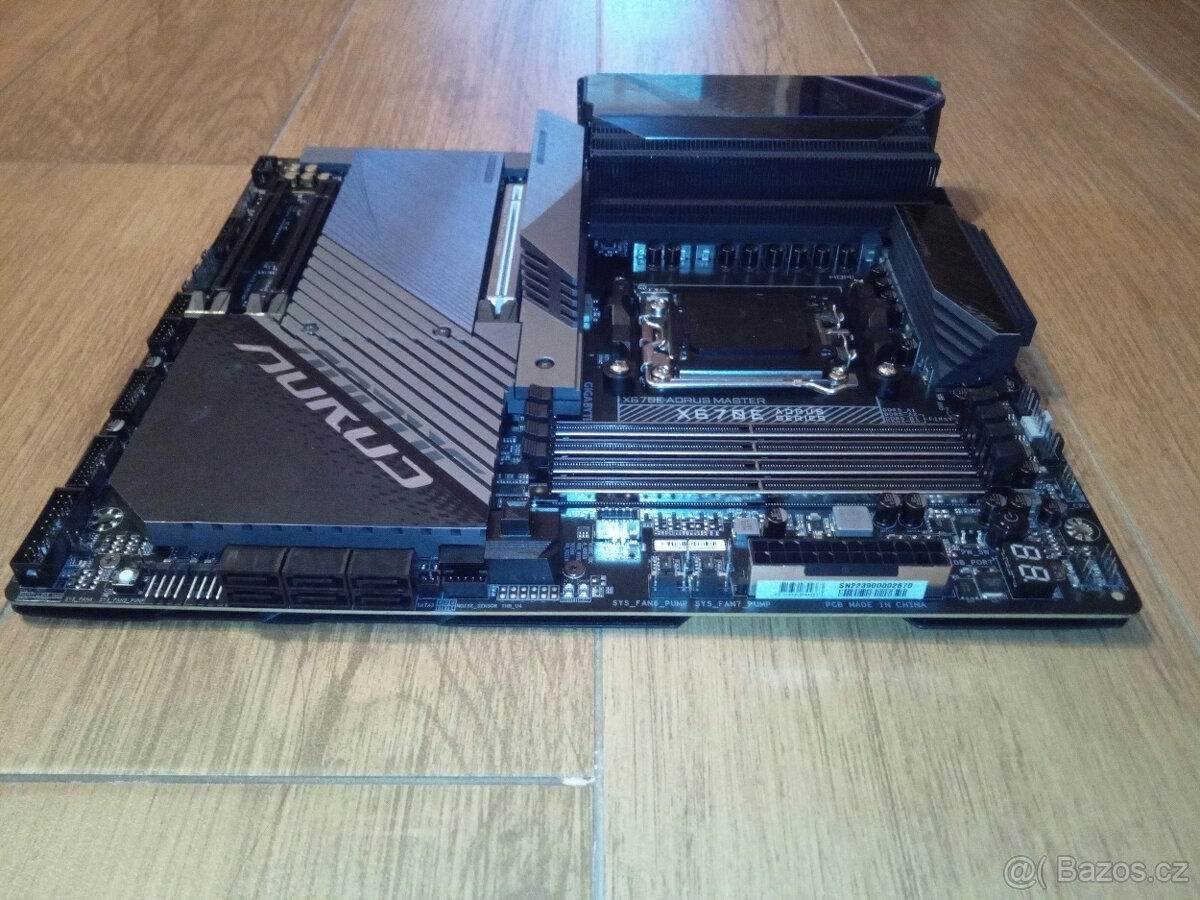

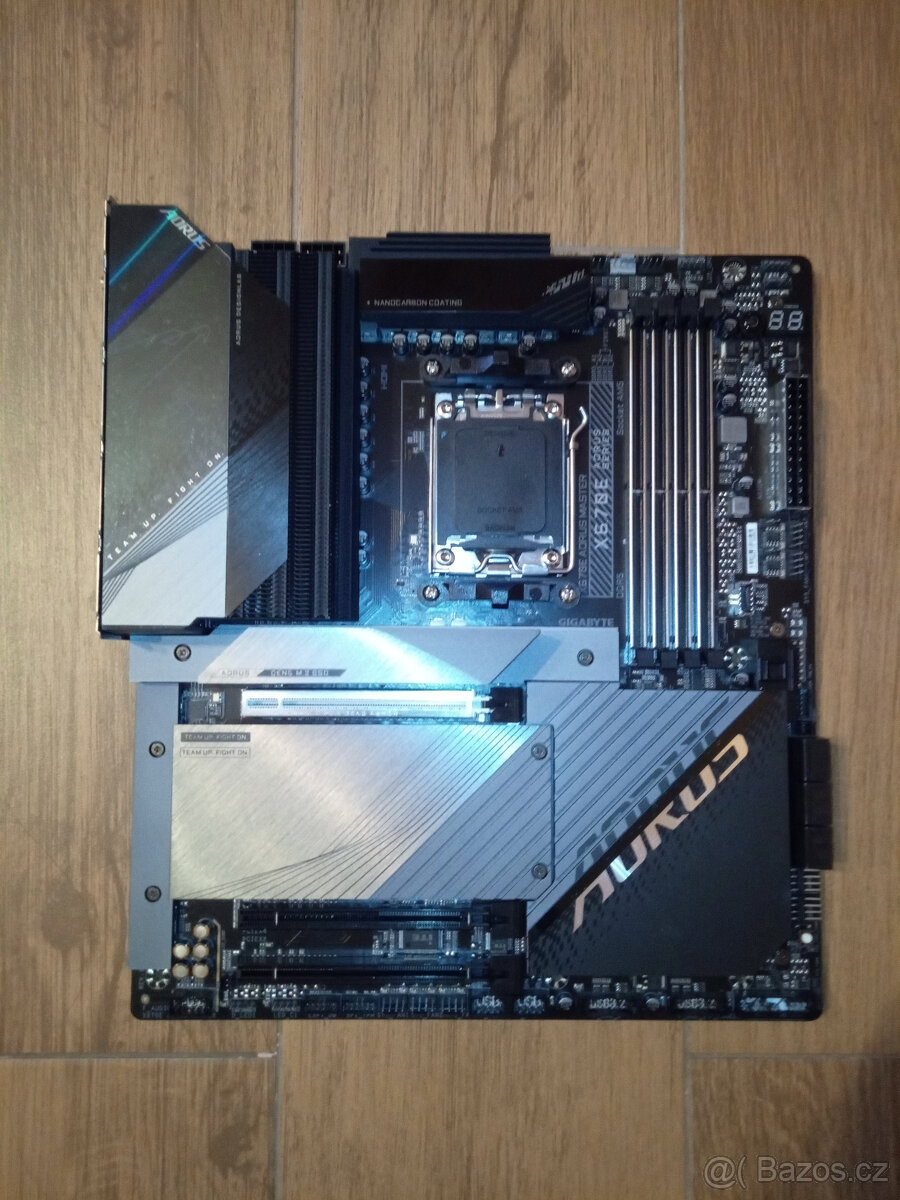

GIGABYTE X670E AORUS MASTER/AM5/E-ATX

funkcni
pouze deska bez prislusentstvi

Chipset: AMD X670

Rozměrový formát: E-ATX Form Factor; (30.5cm x 26.9cm)
Podpora pro procesory: AMD Ryzen 7000 Series Processors

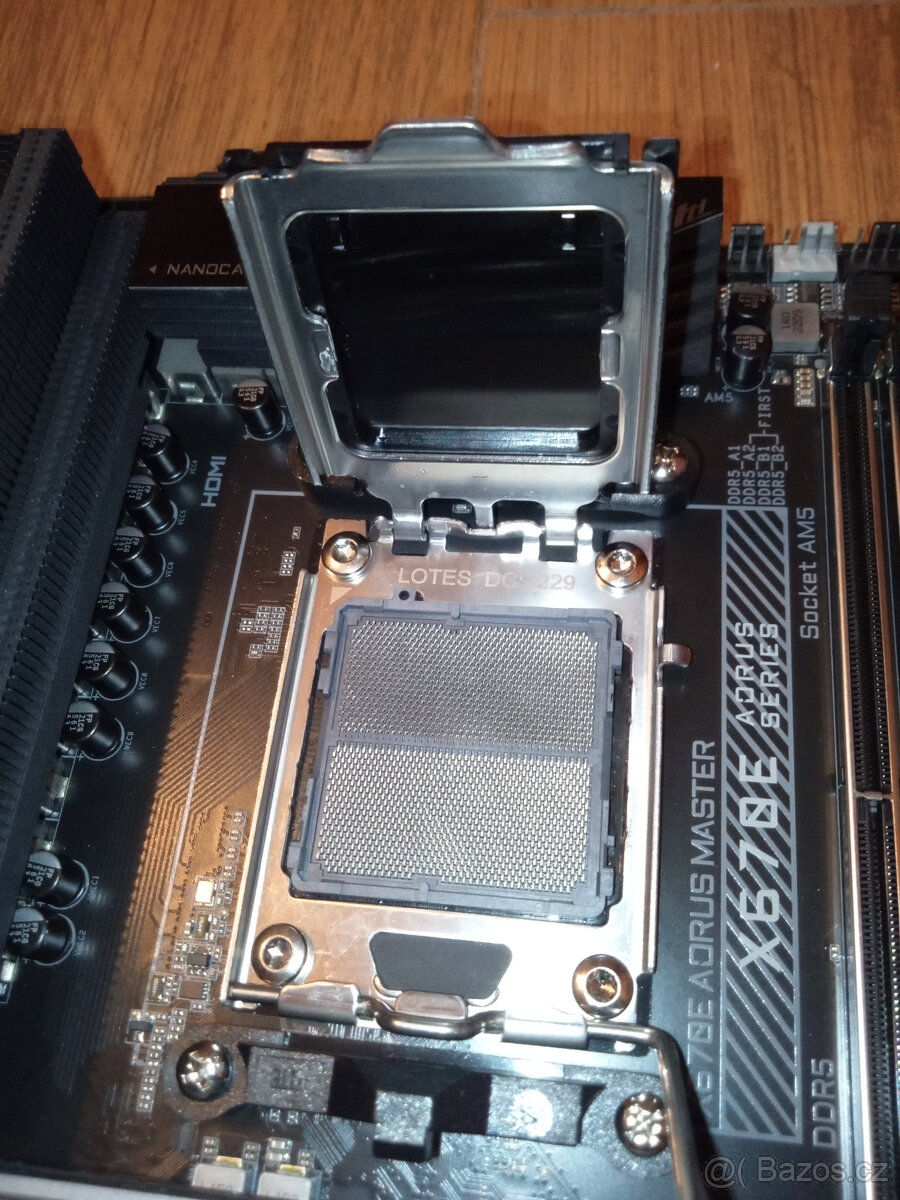

Patice procesoru: AM5

Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: non-ECC, XMP

Grafické výstupy: (na základě procesoru)

1 x DisplayPort 1.4, maximální rozlišení 3840x2160@144 Hz
1 x USB Type-C port maximální rozlišení 3840x2160@144 Hz
1 x HDMI port, maximální rozlišení 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB CODEC

2/4/5.1/7.1-channel output
Podpora S/PDIF Out

Síťová karta:

Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wi-Fi 6E AX210 a, b, g, n, ac, ax
Bluetooth 5.3

Rozšiřující sloty:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2

RAID řadič: RAID 0, RAID 1, RAID 10

SATA: 6 x SATA 6Gb/s connectors
M.2: 4 x M.2 Socket 3 connectors

USB:

Interní:
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Externí:
1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports

Interní porty:

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers

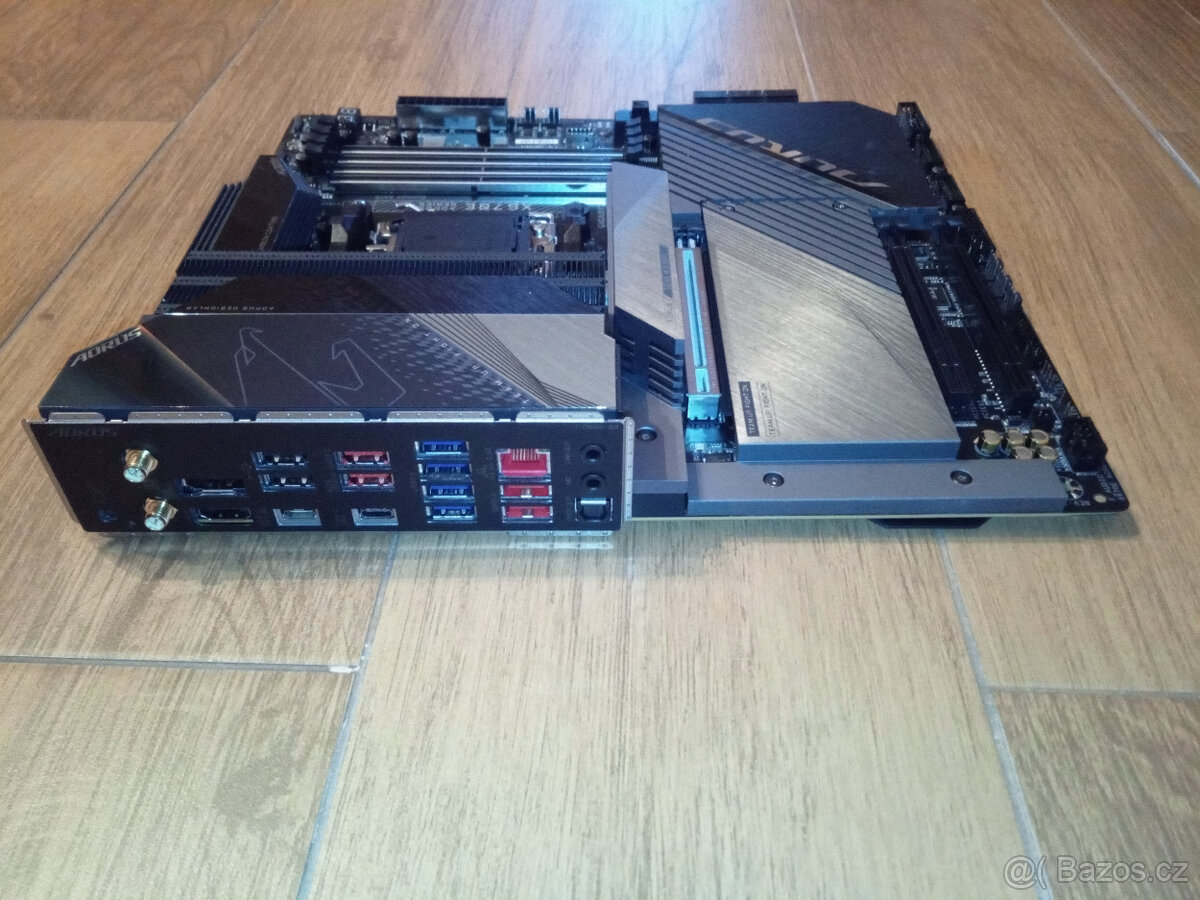

Externí porty:

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
4 x U
