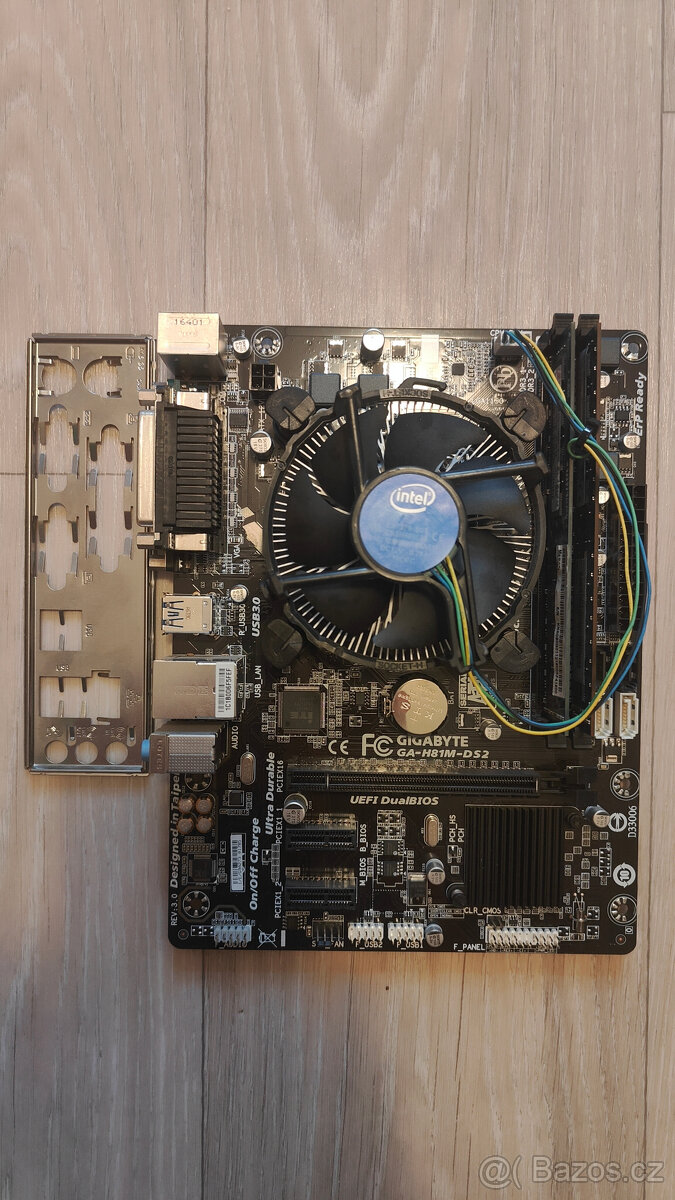

Gigabyte GA-H81M-DS2 + Procesor Intel i5-4590 + 4GB RAM

Základní deska Gigabyte GA-H81M-DS2 + Procesor Intel i5-4590 + 4GB RAM + chladič

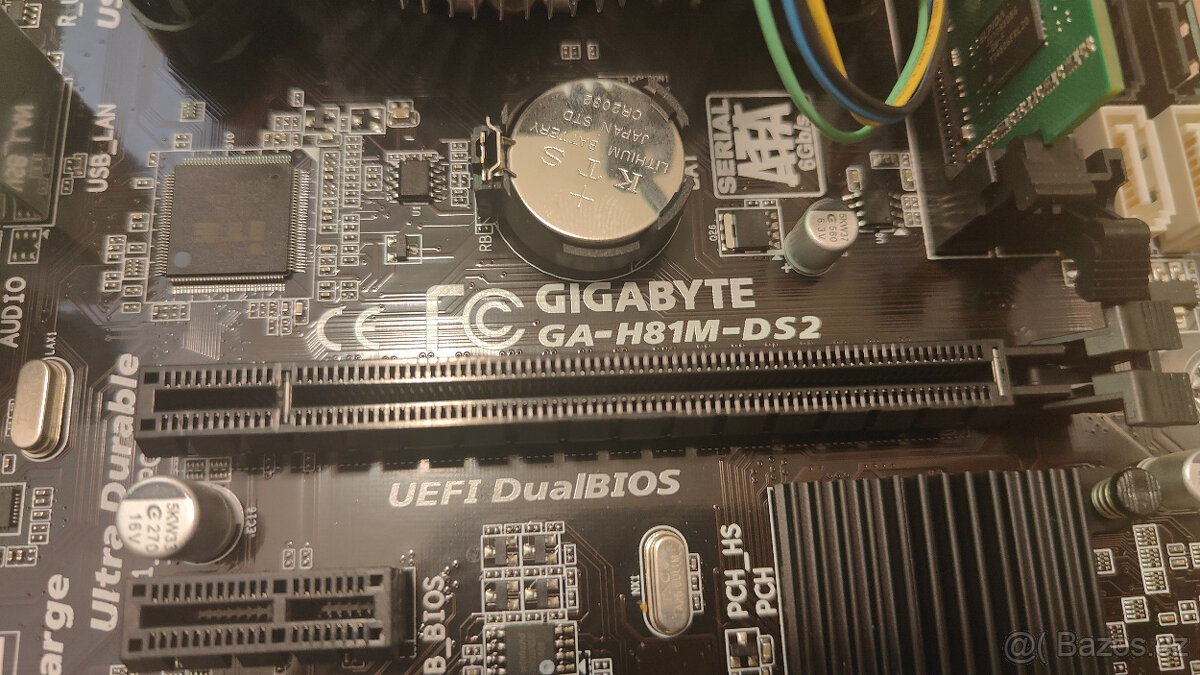

Gigabyte GA-H81M-DS2 rev: 3.0

https://www.gigabyte.com/Motherboard/GA-H81M-DS2-rev-30

Technické specifikace:
Socket: LGA1150
Podporované procesory: 4. generace Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron®
Chipset: Intel® H81 Express
RAM: 2 x DDR3 DIMM sockets up to 16 GB of system memory 1333/1600 MHz
VGA: Intel HD Graphics
LAN: Realtek® GbE (10/100/1000 Mb/s)
Audio: Realtek ALC887 HD audio codec up to 7.1-channel
Form Factor: microATX, 22.6cm x 17cm
Slots:
1 x PCI Express x16
2 x PCI Express x1
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors

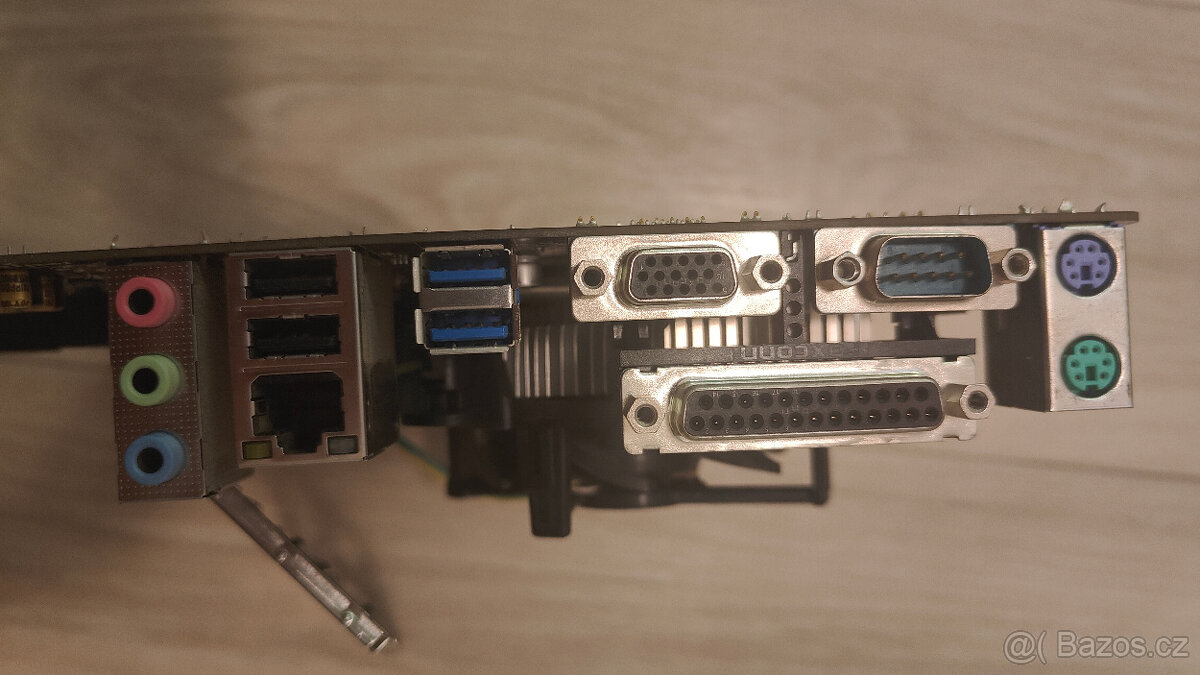

Ports:
1 x VGA
1 x RJ45 LAN
1 x COM
1 x parallel port
2 x PS/2 Keyboard + Mouse
3 × audio jack (linkový vstup/linkový výstup/mikrofon)
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports (+ 4 ports available through the internal USB headers)

Procesor Intel i5-4590 + chladič

https://www.intel.com/content/www/us/en/products/sku/80815/intel-core-i54590-processor-6m-cache-up-to-3-70-ghz/specifications.html

Socket: LGA1150
Code Name: Haswell
Processor Base Frequency: 3.30 GHz
Turbo Boost Technology 2.0 Frequency: 3.70 GHz
Manufacturing process: 22 nm
The number of CPU cores: 4
The number of threads: 4
Cache: 6 MB
TDP: 84 W
GPU Name: Intel® HD Graphics 4600

1 x 4GB RAM

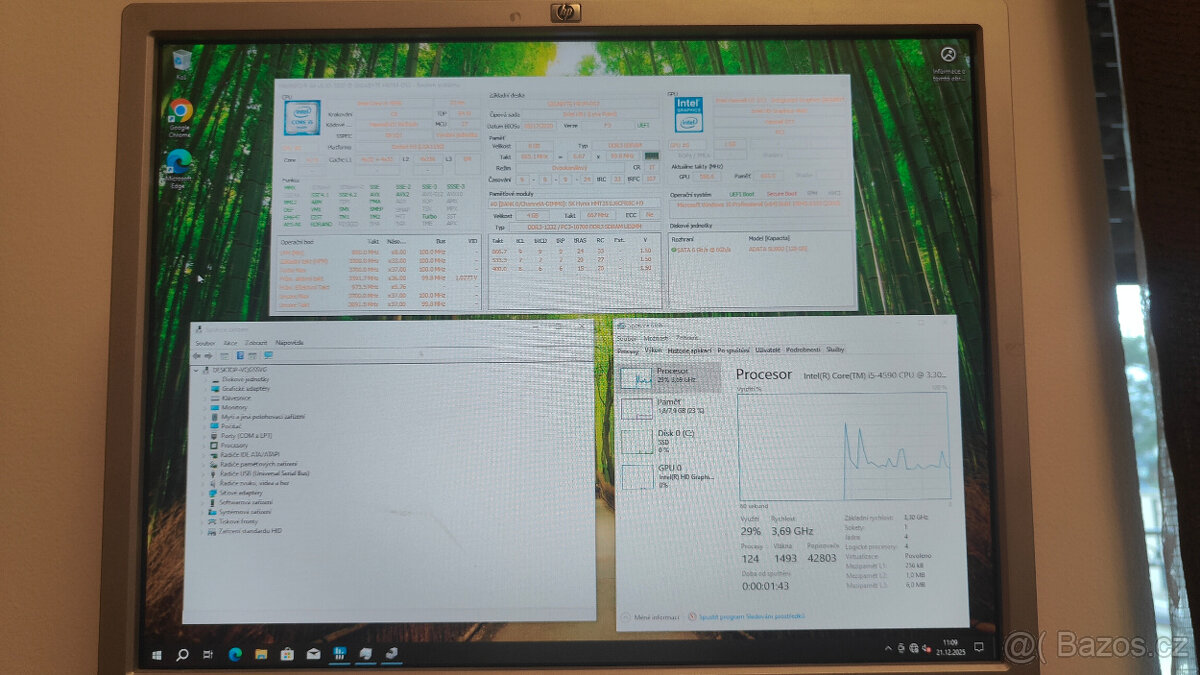

Funkční, otestováno instalací Windows 10!
