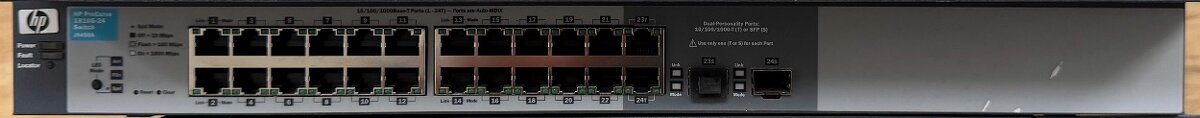

HP ProCurve 1810G-24 Switch J9450A

Přehled
- Web management
- 22 x 100/1000 metalických portů + 2 x Combo 100/1000 porty
- VLANs a trunking (LACP)
- QoS: prioritizace datových toků
- Podpora jumbo packetů (9216-byte frame)
- Auto-MDIX: autodetekce kabelů
- Bezventilátorové provedení pro tichý chod
- Rack, desktop nebo možnost montáže na zeď, pod stůl
- Doživotní záruka

Charakteristika
Quality of Service (QoS)
Traffic prioritization (IEEE 802.1p), Broadcast control
Management
Simple Web management, Secure Web GUI, SNMPv1, v2c, Dual flash images, Port mirroring, IEEE 802.1AB Link Layer Discovery Protocol (LLDP), HP PCM,
Connectivity
Auto-MDI/MDIX, Non-shared SFP ports (1810-48G switch), Dual-personality ports (1810-24G switch), IEEE 802.3af PoE-powered device option (1810-8G switch), Packet storm protection,
Performance
Half-/Full-duplex auto-negotiating capability on every port, Link aggregation (trunking), Fiber uplink,
Layer 2 switching
VLAN support and tagging, Jumbo packet support,
Security
Secure Sockets Layer (SSL), Automatic denial-of-service protection, Management password
Ease of use
Locator LED (switch), Comprehensive LED display with per-port indicators
Flexibility
IEEE 802.3af PoE-powered device option (1810-8G switch), Flexible mounting options, Rack mountable (1810-24G and 1810-48G switches), Kensington Lock slot,
Additional information
Green initiative support, Green IT and power,
Warranty and support
Lifetime warranty, Electronic and telephone support

Technická specifikace
Porty
22 autosensing 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 2 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Rámování
Mounts in an EIA-standard 19 in. telco rack (hardware included); wall, desktop, tabletop, and under-table mounting
Paměť a procesor
8 MB flash, packet buffer size: 512 KB, 16 MB SDRAM
Čekací doba
100 Mb Latency: < 7.4 µs (64-byte packets); 1000 Mb Latency: < 3.0 µs (64-byte packets)
Datový tok
up to 35.7 million pps (64-byte packets)
Funkce správy
HP PCM; Web browser
Přepínací kapacita
48 Gbps
Ochrana proti útoku
CPU DoS Protection
Obecné protokoly
IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 1534 DHCP/BOOTP Interoperation; RFC 2030 Simple Network Time Protocol (SNTP) v4
Správa sítě
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Spotřeba energie
30 W (maximum)
Vstupní napětí
100-127/200-240 VAC
Provozní proud na vstupu
0.7/0.4 A
Vstupní kmitočet
50/60 Hz
Bezpečnost
CSA 22.2 No. 60950; EN 60950/IEC 60950; UL 60950
Kompatibilita s elektromagnetickými normami
F
